DerAnbieter Trading | Hyperbaric Chamber

Hyperbaric Oxygen Therapy

Hyperbaric Oxygen Therapy is the medical use of oxygen at an increased level of pressure, (hyper) means increased, (baric) means pressure. Hyperbaric Oxygen Therapy is a treatment which enhances the body's natural healing process by providing an environment which allows the body to absorb much higher amounts of oxygen than possible at normal atmospheric pressure. It increases the oxygen transport capacity in the blood. This noninvasive therapy is the most trusted way to increase oxygen levels to all organs of the body.

It is used around the world to treat a wide range of conditions, including autism, diabetic ulcers, strokes, traumatic brain injuries, migraines, wounds, inflammation, orthopedic rehabilitation, crush injuries, and is becoming used in a much wider range as research develops. It is also used by athletes who wish to speed up recovery of tissue damage caused by hard training.

Treatments usually last for 60-90 minutes where the client lies in a comfortable chamber and breathes high levels of oxygen.

Hyperbaric Chamber Lying Type

FEATURES

  • 1.5 ATA 97psi) operating pressure.
  • 3 zipper seal for easier entrance.
  • Nylon chamber protection cover, to avoid dirty and easy to wash.
  • The highest pressure in soft type hyperbaric chamber.
  • Emergency valve - To speed the depressurization in emergency.
  • Easy Operation - One people can operate it without assistance.
  • Delivers 93% oxygen under pressure via an oxygen headset/facial mask.
  • Internal Pressure Gauge - User can observe the pressure while inside the chamber.
  • Internal metal frame - Hold the shape when deflated.
Model ST702-1.5
Chamber Capsule Pressure 1.5 ATA (7 psi)
Material TPU
Size (D*L) 70x225cm (28*89")
Weight 12kg
Air Compressor Size 39x24x26cm (16" x 10" x 11")
Type Quite&Oil Free Type. Two Super adsorption activated carbon filters in air Input and Outlet to protect.
Oxygen Concentrator Size 35x32x57cm (14" x 13" x 23 ")
Flow Rate 10 Liter/min
Description PSA Molecular Sieve High Technology. Continuous Oxygen production, no need for oxygen tank.
Air Cooler Size 18x12x35cm (7.2" x 5" x 14")
Decription Cooling and dehumidification

Hyperbaric Chamber Lying Type

FEATURES

  • 1.3 ATA /1.4 ATA operating pressure.
  • 2 zipper seal for easier entrance.
  • 7 large transparent viewing windows to prevent claustrophobia.
  • Cotton chamber protection cover, to avoid dirty and easy to wash.
  • Most popular model for home treatment or commercial usage.
  • Emergency valve - To speed the depressurization in emergency.
  • Easy Operation - One people can operate it without assistance.
  • Delivers 93% oxygen under pressure via an oxygen headset/facial mask.
  • Internal Pressure Gauge - User can observe the pressure while inside the chamber.
  • Internal metal frame - Hold the shape when deflated.
Model ST801 ST901
Chamber Capsule Pressure 1.3ATA /1.4ATA 1.3ATA (4psi)
Material TPU TPU
Size (D*L) 80x225cm (32*89") 90x225cm (36*89")
Weight 13kg 16kg
Air Compressor Size 39x24x26cm (16" x 10" x 11")
Type Quite & Oil Free Type. Two Super adsorption activated carbon filters in air Input and Outlet to protect.
Oxygen Concentrator Size 35x32x57cm (14" x 13" x 23")
Flow Rate 5 Liter/min
Description PSA Molecular Sieve High Technology. Continuous Oxygen production, no need for oxygen tank.
Air Cooler Size 18x12x35cm (7.2" x 5" x 14")
Description Cooling and dehumidification

Hyperbaric Chamber Sitting Type

FEATURES

  • 1.3 ATA /1.4 ATA operating pressure.
  • Fully covered with nylon cover - Unique 3 zipper seal for air leak prevention.
  • Designed to add a folding chair (adjustable height) for ultimate comfort.
  • Internal metal frame - Hold the shape when deflated.
  • Emergency valve - To speed the depressurization in emergency.
  • Delivers 93% oxygen under pressure via an oxygen headset/facial mask.
  • Easy Operation - One people can operate it without assistance.
  • Internal Pressure Gauge - The user can observe the pressure while inside the chamber.
Model ST1700
Chamber Capsule Pressure 1.3ATA / 1.4ATA
Material TPU
Size (D*L) 170x70x110cm (67" x 28" x 43")
Weight 13kg
Air Compressor Size 39 x 24 x 26cm (16" x 10" x 11")
Type Quiet & Oil Free Type. Two Super adsorption activated carbon filters in air Input and Outlet to protect.
Oxygen Concentrator Size 35 x 32 x 57cm (14" x 13" x 23")
Flow Rate 5 Liter/min
Description PSA Molecular Sieve High Technology. Continuous Oxygen production, no need for oxygen tank.
Air Cooler Size 18 x 12 x 35cm (7.2" x 5" x 14")
Description Cooling and dehumidification

FEATURES

  • 1.3 ATA (4psi) operating pressure.
  • Fully covered with nylon cover - Unique 3 zipper seal for air leak prevention.
  • Designed to add a folding chair (adjustable height) for ultimate comfort.
  • Internal metal frame - Hold the shape when deflated.
  • Extended site sitting chamber, one can both lay down and sit down.
  • Delivers 93% oxygen under pressure via an oxygen headset/facial mask.
  • Easy Operation - One people can operate it without assistance.
  • Internal Pressure Gauge - The user can observe the pressure while inside the chamber.
Model ST2200
Chamber Capsule Pressure 1.3ATA (4psi)
Material TPU
Size (D*L) 220x70x110cm (89" x 28" x 43")
Weight 14kg
Type Sitting/Lying
Air Compressor Size 39x24x26cm (16" x 10" x 11")
Type Quiet & Oil Free Type. Two Super adsorption activated carbon filters in air Input and Outlet to protect.
Oxygen Concentrator Size 35 x 32 x 57cm (14" x 13" x 23")
Flow Rate 5 Liter/min
Description PSA Molecular Sieve High Technology. Continuous Oxygen production, no need for oxygen tank.
Air Cooler Size 18 x 12 x 35cm (7.2" x 5" x 14")
Description Cooling and dehumidification

Hyperbaric Chamber Wheelchair Type

FEATURES

  • 1.3ATA (4psi) mild operating pressure.
  • Fully covered with nylon cover - Unique 3 zipper seal for air leak prevention.
  • Emergency valve - To speed the depressurization in emergency.
  • Delivers 93% oxygen under pressure via an oxygen headset or oxygen mask.
  • Available "u" type door and "n" type for your choice.
  • Designed to accomodate 2 folding chairs with comfortable space.
  • Wheelchair accessible, Designed for people with limited mobility.
Model MC4000
Chamber Capsule Pressure 1.3ATA (4psi)
Material TPU
Size (D*L) 140x130x175cm (56*52*70inch)
Weight 20kg
Air Compressor Size 39x24x26cm (16" x 10" x 11")
Type Quite & Oil Free Type. Two Super adsorption activated carbon filters in air Input and Outlet to protect.
Oxygen Concentrator Size 35x32x57cm (14" x 13" x 23")
Flow Rate 5 Liter/min
Description PSA Molecular Sieve High Technology. Continuous Oxygen production, no need for oxygen tank.
Air Cooler Size 18x12x35cm (7.2" x 5" x 14")
Description Cooling and dehumidification
Folding Chair (Optional) Description Durable and elastic. Can sit or semi-lying inside chamber. Weight: 9kg

Hyperbaric Chamber Multiple Type

FEATURES

  • 1.3 ATA (4psi) operating pressure.
  • Diameter is 2000mm. Could accomodate 4-6 people.
  • Special material design at the bottom, smooth and flat. Could sit inside or lie down.
  • Emergency valve - To speed the depressurization in emergency.
  • Delivers 93% oxygen under pressure via an oxygen headset/facial mask.
  • Easy Operation - One people can operate it without assistance.
  • Internal Pressure Gauge - The user can observe the pressure while inside the chamber.
Model STM2000
Chamber Capsule Pressure 1.3ATA (4psi)
Material TPU
Size (D*L) 200x180x200cm (78"x70"x78")
Weight 60kg
Type Multiplace
Air Compressor Size 76x42x66cm (30" x 16" x 26")
Type Quite & Oil Free Type. Two Super adsorption activated carbon filters in air Input and Outlet to protect.
Oxygen Concentrator Size 35x32x57cm (14" x 13" x 23")
Flow Rate 10 Liter/min
Description PSA Molecular Sieve High Technology. Continuous Oxygen production, no need for oxygen tank.
Folding Chair (Optional) Description Durable and elastic. Can sit or semi-lying inside chamber. Weight: 9kg

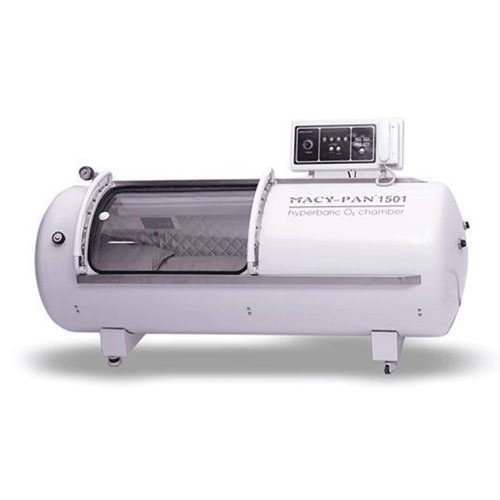

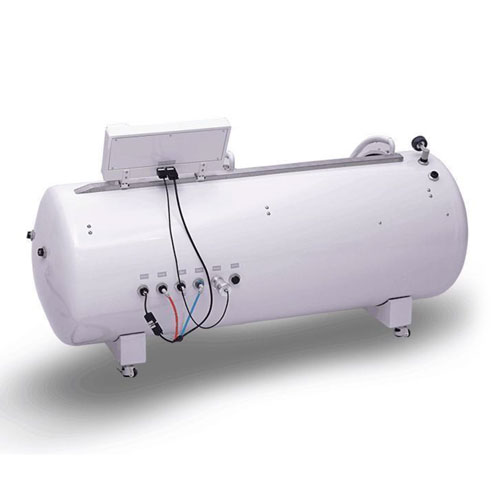

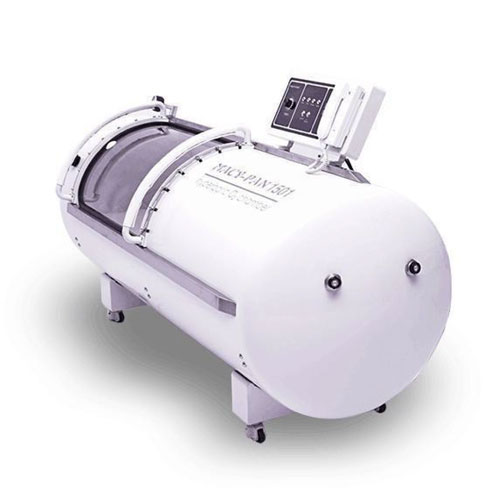

Hyperbaric Chamber Hard Type

FEATURES

  • 1.5/1.6 ATA operating pressure.
  • 75 and 90cm diameter optional.
  • Interphone system for two-way communications.
  • Pneumatic control system, unique sliding door secure locking mechanism for convenient door opening and closing.
  • Wide and convenient transparent viewing window.
  • Delivers 93% oxygen under pressure via an oxygen headset/facial mask.
  • User friendly design, safe and simple to operate.

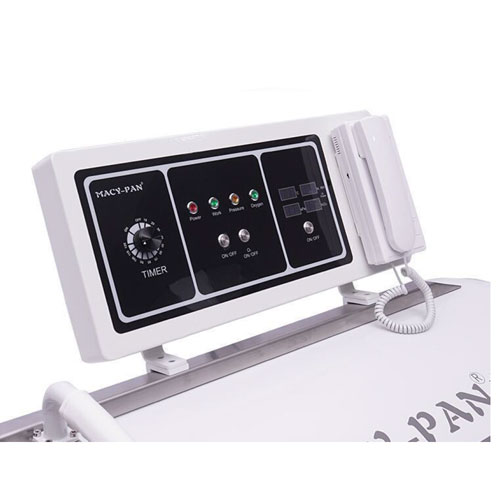

  • Control system combines of air compressor, oxygen concentrator and cooling unit.
Model HP1501-75 HP1501-90
Chamber Capsule Pressure 1.5ATA / 1.6ATA 1.5ATA / 1.6ATA
Material Stainless steel + Polycarbonate
Size (D*L) 75x220cm (30x82") 90x220cm (36x82")
Weight 140kg 170kg
System Machine Size/weight 77*46*72cm (30"x18"x28"), 70kg
Flow of Air 72 Liter/min
Flow of Oxygen 1-5L/min adjustable (10L available)
Air Filter Dual
Voltage 110VAC/220VAC ± 10%
Description All-in-one machine, a combine of air compressor, oxygen concentrator, and cooler.

Hyperbaric Chamber 2.0ATA Type

FEATURES

  • 2.0 ATA(14.5psi) operating pressure.
  • The highest pressure in MACY-PAN chambers.
  • Pneumatic control system, unique sliding door secure locking mechanism for convenient door opening and closing.
  • 75 and 85cm diameter optional.
  • Interphone system for two-way communications.
  • Delivers 93% oxygen under pressure via an oxygen headset/facial mask.
  • Control system combines of air compressor oxygen concentrator and cooling unit.
  • User friendly design, safe and simple to operate.
Model HP2202-75 HP2202-85
Chamber Capsule Pressure 2.0ATA (14.5psi) 2.0ATA (14.5psi))
Material Stainless steel + Polycarbonate
Size (D*L) 75x220cm (30x82") 85x220cm (34x82")
Weight 150kg 180kg
System Machine Size/weight 76*45*65cm (30.4"x18"26"), 80kg
Flow of Air 72 Liter/min
Flow of Oxygen 1-10L/min adjustable
Air Filter Dual
Voltage 110VAC/220VAC ± 10%
Description All-in-one machine, a combine of air compressor, oxygen concentrator, and air dryer, air conditioner as an option.

Hyperbaric Chamber Stretcher Type

FEATURES

  • 1.8ATA (11.6 psi) operating pressure.
  • Patient with limited mobility can be moved in and out of the chamber via a sliding stretcher.
  • Delivers 95% oxygen under pressure via an oxygen headset or oxygen mask.
  • Communication system allows the patient to communicate to the operator.
  • Dual-operated deflate valve, allows the professional to regulate them from the outside, or the patient to operate them internally.
  • Then control system combines compressor, oxygen concentrator, and cooling unit, pressure, temperature, light within the chamber is easily controlled by the operator.
Model MC750
Chamber Capsule Pressure 1.8ATA (11.6psi)
Material Stainless steel
Size (D*L) 75x220cm (30x80")
Weight 132kg
System Machine Size/weight (L x W x H) 58x42x56cm 23x17x22inch
Flow of Air 80 Liter/min
Flow of Oxygen 1-10Liter/min
Air Filter Dual
Voltage 110/220/240VAC
Description All-in-one machine, a combine of air compressor, oxygen concentrator, and air cooler.
Air Conditioner Temperature range 110°C ~ Room temperature
Voltage 110/220/240VAC
Weight 15kg

Hyperbaric Chamber Veterinary Type

FEATURES

  • Gastric dilation and volvulus, and the associated injuries.
  • Fracture repair, especially open fractures or those involving malunion or nonunion.
  • Gastrointestinal resection and anastamosis, especially post-foreigh body obstruction.
  • Amputations
  • Skin grafts
  • Hemilaminectomy
  • Ear canal ablation
Model HP600 HP700
Chamber Capsule Pressure 1.3/1.4ATA (4/5.8psi) 1.5ATA (7psi)
Material Aluminum + Acrylic Stainless Steel + PC
Cabin diameter 60cm 70cm
Size (D*L) 125x73x86cm (49x29x34") 142x71x93cm (57x28x37')
Weight 65kg 100kg
System Machine Size/weight 77*46*72cm (30"x18"28"), 70kg
Flow of Air 72 Liter/min
Flow of Oxygen 1-5L/min adjustable
Air Filter Dual
Voltage 110VAC/220VAC ± 10%
Description All-in-one machine, a combine of air compressor, oxygen concentrator, and cooler.

Frequently Asked Question (FAQ)

Every day an average adult consumes 2 kg of food, 1 liter of water and almost 550 liters of oxygen, 90% of our daily energy comes from oxygen and the rest food and water. Human brain is 2% of the total weight and uses 25% of the oxygen we breathe. We need this oxygen for the energy cycle that sustains life. When we do not have enough oxygen in our body tissues a series of events occur that if not corrected lead to disease conditions, either infection, tissue destruction or both. If there is low oxygen in tissues (hypoxia) there is a short window of opportunity to correct it. An excellent method to correct tissue hypoxia is by using hyperbaric chamber.
When the chamber is pressurization, your ears may feel pressure changes. You might feel a little painful in ears. To equalize the pressure and avoid the feeling of fullness in ears, You can yawning, swallowing or "blow the nose". Other than this ear pressure there are no unusual or different sensations.
When we are inside a chamber pressurized at 1.3 or 1.5 times of the normal air pressure it may not feel different, but breathing pure oxygen in such a chamber gives u s7-8 time the regular amount of oxygen. Henry's Law - Henry's law states that for a gas-liquid interface the amount of the gas that dissolves in the liquid is proportional to its partial pressure. The pressurized oxygen dissolves directly into all body fluids. In a few minutes this extra oxygen builds up tissue oxygen levels far above normal. This action has been scientifically proven to stimulate healing.
This is one of those questions which has so many different variables and answers we will have to generalize. We will answers this question from general experience and with the understanding that no 2 people get the same results. It is very rare that we do not see improvements. What we are looking for is an improvement in the quality of life for anyone.
You will not. What you will be able to notice is whether you are continuing to get improvements. A clinical study on 1730 subjects shows the need of around 15 sessions for acute injuries and 40 for chronic ones. If you saw results during the first 40 sessions, do another 40. If improvements continue, do another 40. Etc. Etc. You are a better judge of the number of sessions needed than any Doctor.
Oxygen Toxicity is not a problem at pressures below 1.5 ATA. Many times stress is mistaken for oxygen toxicity. Occasionally, there may be a patient who is more sensitive to Oxygen than others and pressures may need to be adjusted to meet the needs of the patient.

Customer Arount The World

MACY-PAN Hyperbaric Chamber has been sold to over 120 countries around the world.
