PLASMA STERILIZER (CONSUMABLE)
Product Overview:
SANQIANG brand low-temperature plasma sterilizer generates plasma in the sterilization chamber under low temperature and vacuum through the action of high-frequency electric field to chemically react with proteins and nucleic acids in microorganisms, and then uses H202 as the medium to destroy microorganisms and disturb the survival function of microorganisms, so as to finally achieve the sterilization effect.
Applicable articles:

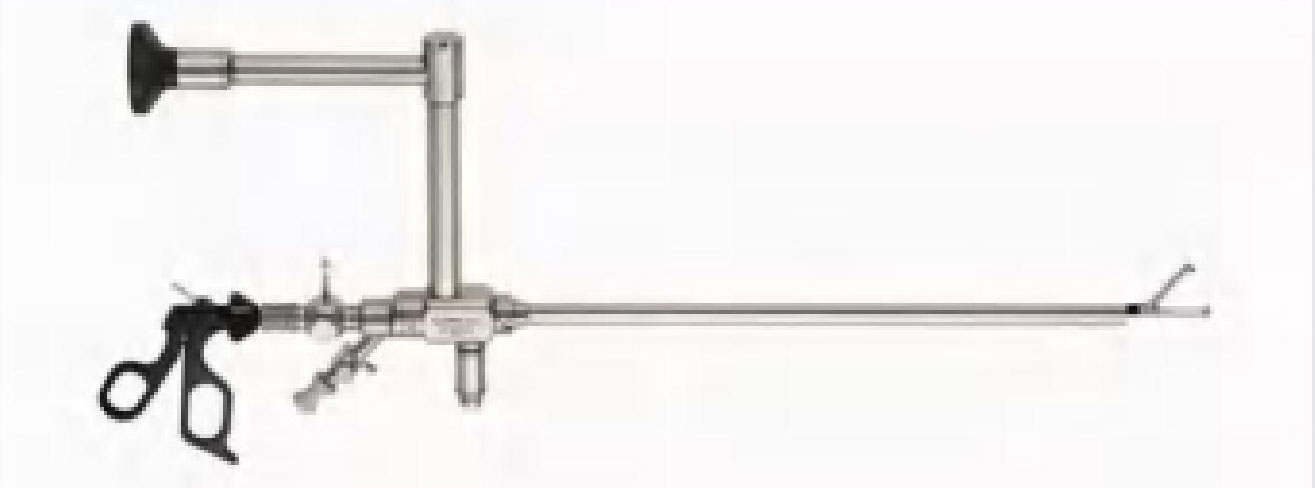

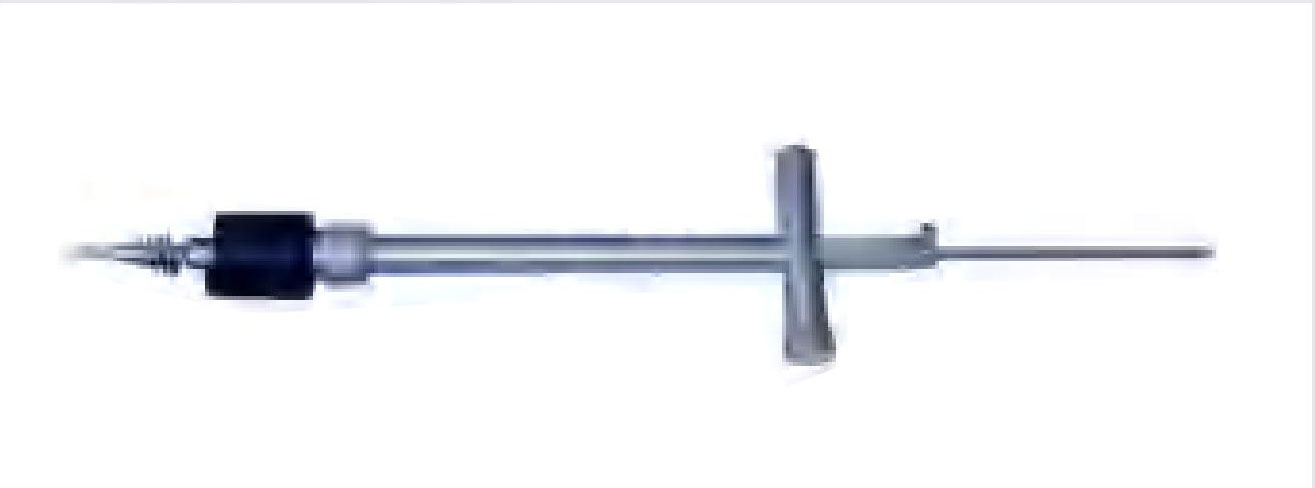

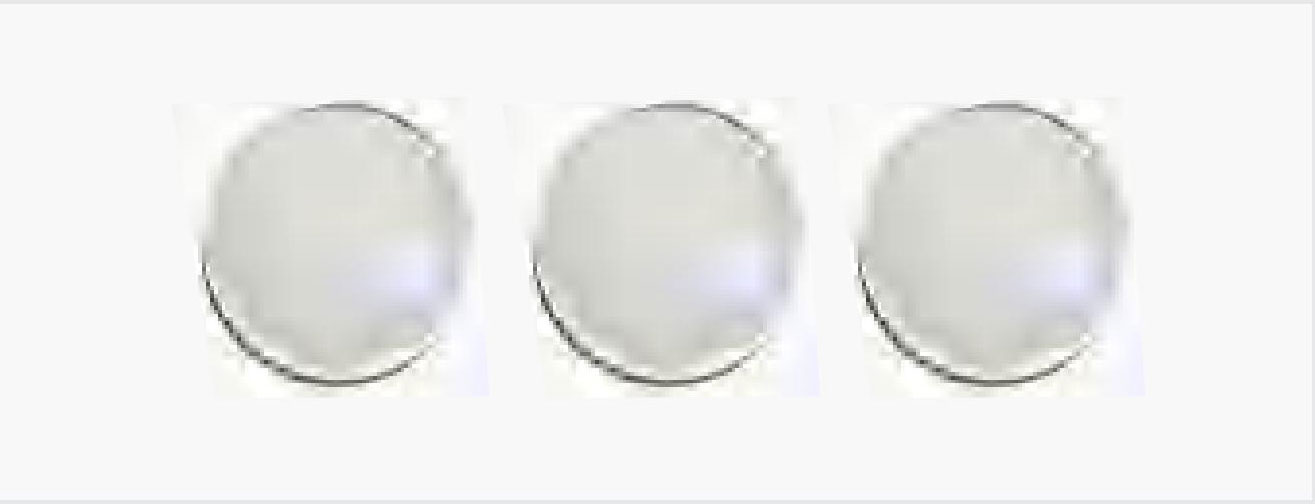

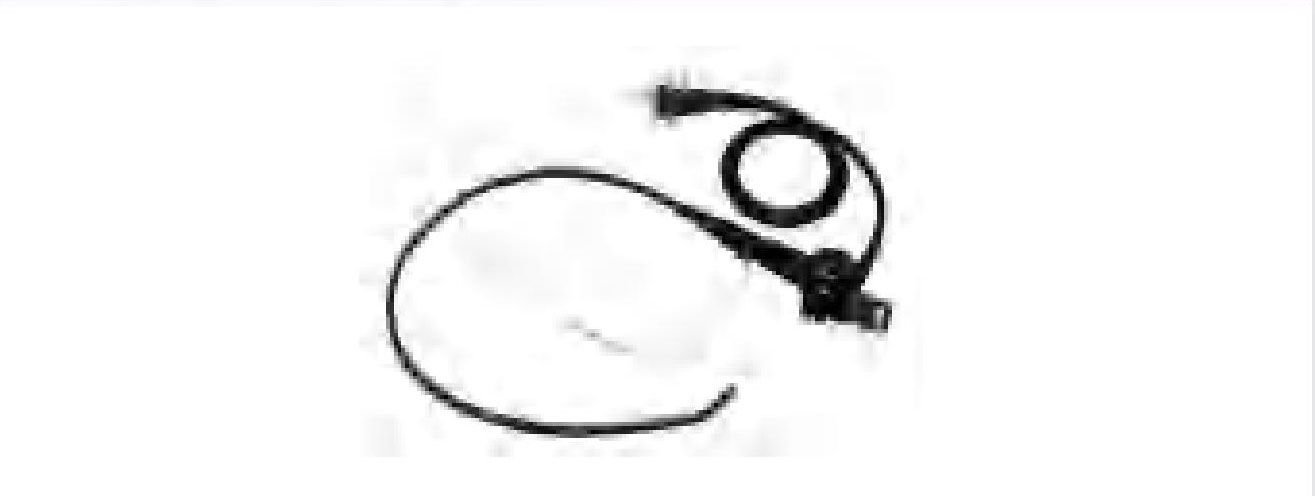

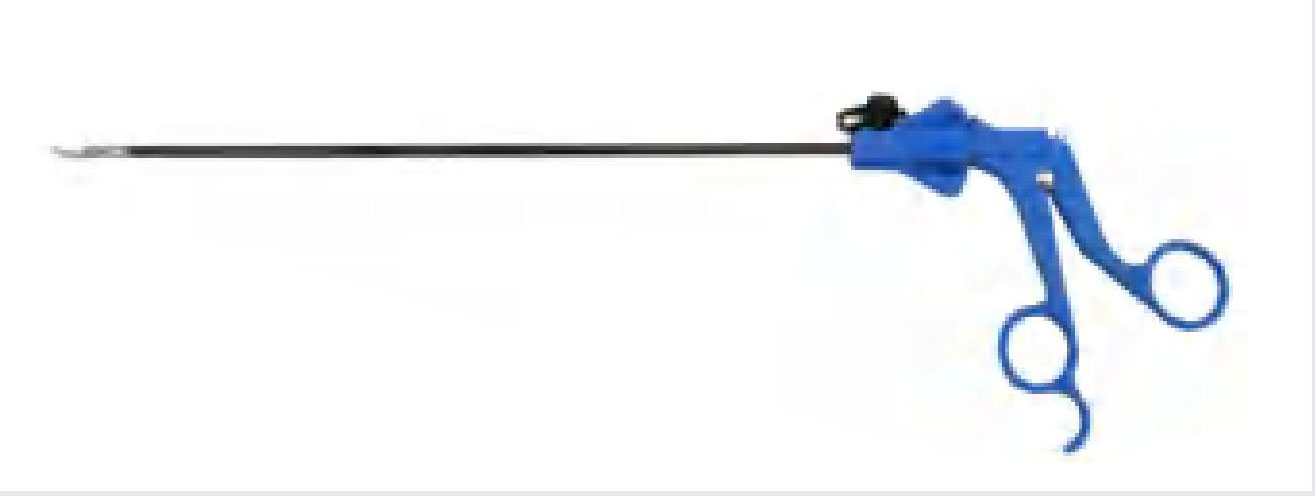

Rigid endoscope; soft endoscope; probe; ophthalmic lens; fiber opticable; intracranial sensor; cold therapy proble; surgical excision device; electrocautery equipment; defibrillation motor; metal; glass; silicone; rubber ETC.
Applicable scenario:
CSSD disinfection supply center, operating room, inspection department, university laboratory and relevant testing institutions.
| Applicable items and materials | ||||
|---|---|---|---|---|
 |
 |
 |
 |
 |

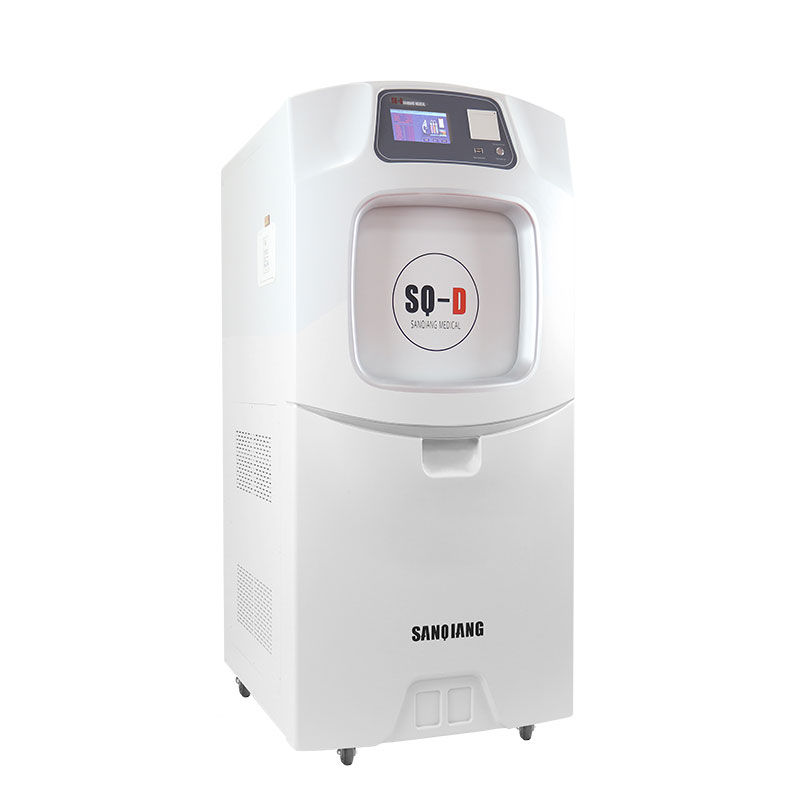

LOW TEMPERATURE PLASMA HYDROGEN PEROXIDE STERILIZER
| Model | Liner (D*W*H) mm | Outside (L*W*H) mm | Volume | Power | Weight |
|---|---|---|---|---|---|
| SQ-D-100 | 700X430X360 | 1100X800X1780 | 108L | 3.4KVA | 239KG |
| SQ-D-130 | 750X450X400 | 1100X800X1780 | 135L | 3.5KVA | 245KG |
| SQ-D-220 | 820X510X460 | 1100X800X1780 | 192L | 4.3KVA | 263KG |
HYDROGEN PEROXIDE LOW TEMPERATURE PLASMA STERILIZER
| Model | Liner (D*W*H) mm | Outside (L*W*H) mm | Volume | Power | Weight |
|---|---|---|---|---|---|

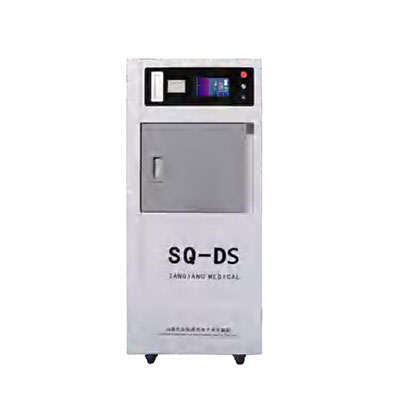

| SQ-DS60 | 610X350X320 | 750X630X1495 | 68L | 2.6KVAA | 185KG |

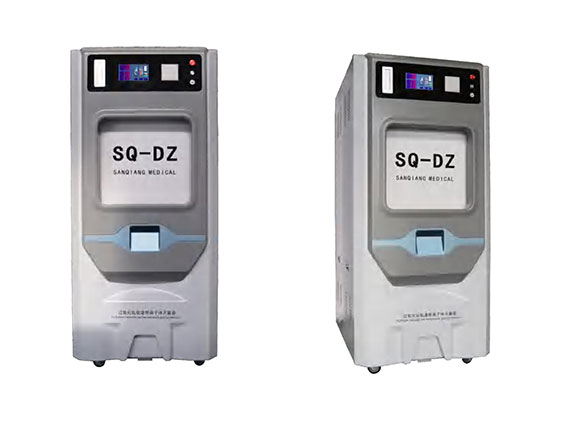

HYDROGEN PEROXIDE LOW TEMPERATURE PLASMA STERILIZER
| Model | Liner (D*W*H) mm | Outside (L*W*H) mm | Volume | Power | Weight |
|---|---|---|---|---|---|
| SQ-DZ100 | 700X430X360 | 1105X790X1765 | 108L | 3.5KVA | 265KG |
| SQ-DZ130 | 750X450X400 | 1105X790X1765 | 135L | 4.2KVA | 272KG |
| SQ-DZ220 | 820X510X460 | 1105X790X1765 | 192L | 4.8KVA | 305KG |
PLASMA CONSUMABLE
Plasma-related consumables are a series of products produced in order to solve the problem of checking whether the sterilization of the plasma series of sterilizers is qualified during the sterilization process.
TYVEK Sterilization
H202 Plasma chemical indicator strip
Biological indicator
Chemical indicator tape
Chemical indicator label
Sealing machine
Medical non-woven fabric
Plasma sterilant cassette
Thermal printing paper
STEAM STERILIZER (CONSUMABLE)
The pulsating pre-vacuum pressure steam sterilizer produced by Henan Sanqiang Medical Equipment Co., Ltd. is a sterilization setting that fully meets the requirements of CSSD&GMP specifications. Vacuum is mainly used to make the sterilization cabinet form negative pressure, and cold air is drawn out, so that saturated steam can quickly penetrate the inside of the article for sterilization.
Applicable scenario:
CSSD disinfection supply centers, inspection departments, disease prevention and control centers, inspection and quarantine institutions at all levels of hospitals.
| Applicable items and materials | ||||
|---|---|---|---|---|
 |
 |
 |
 |
 |

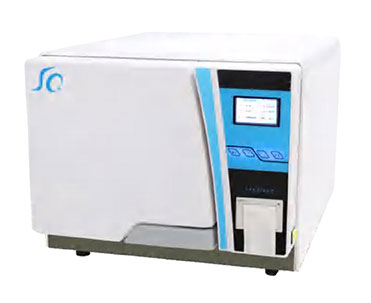

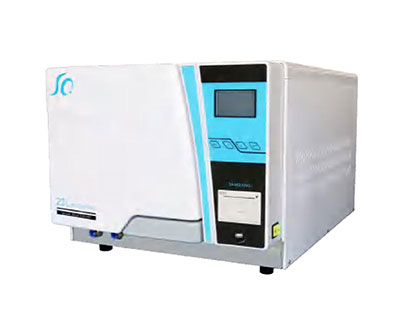

PRE-VACUUM PRESSURE STEAM STERILIZER
Product overview:
The sterilizer uses automatic door lock, human-machine interface + LCD screen display, safe and reliable. Microprocessor intelligent control, vacuum, water injection, temperature rise, pressure relief, exhaust, drying, and power off are automatically completed.
| Model | Liner (D*W*H) mm | Outside (L*W*H) mm | Volume | Power | Weight |
|---|---|---|---|---|---|
| SQ-Z23 | Φ 246X450 | 715X513X425 | 23L | 1.7KVA | 49KG |

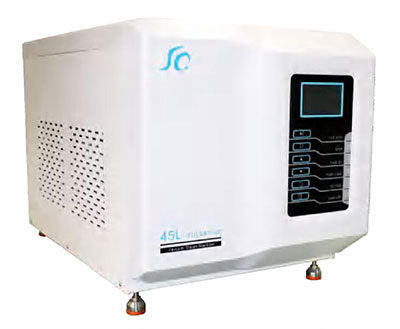

Scope of application:
Sanqiang pre-vacuum rapid pressure steam sterilizer is suitable for the sterilization of packaged or unpackaged items in dental, ophthalmology, operating room, supply room, dialysis room, delivery room and other medical and health departments with hight sterilization requirements.
| Model | Liner (D*W*H) mm | Outside (L*W*H) mm | Volume | Power | Weight |
|---|---|---|---|---|---|
| SQ-Y45 | Φ 320X620 | 900X565X600 | 45L | 3.5KVA | 108KG |

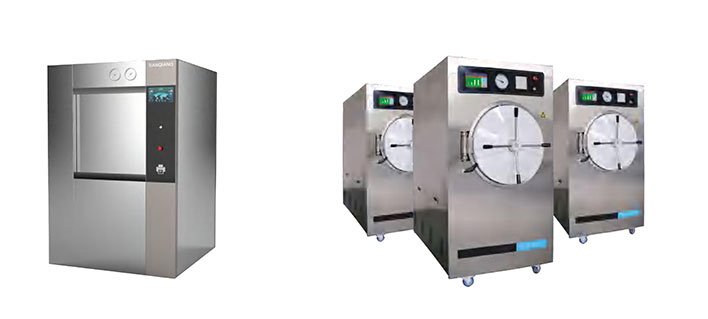

PULSATING VACUUM PRESSURE STEAM STERILIZER
| Model | Liner (D*W*H) mm | Outside (L*W*H) mm | Volume | Power | Weight |
|---|---|---|---|---|---|
| SQ-M100 | Φ 420X700 | 1150X770X1520 | 100L | 15KVA | 308KG |
| SQ-M200 | Φ 500X1000 | 1360X810X1580 | 200L | 18KVA | 363KG |
PLASMA CONSUMABLE
Plasma-related consumables are a series of products produced in order to solve the problem of checking whether the sterilization of the plasma series of sterilizers is qualified during the sterilization process.
Steam ETO sterilization pouch roll
Chemistry indicator strip
Steam biological indicator
Chemistry indicator tape
BD standard test package
Chemical indicator label
Sealing machine
Steam integrator strip
Sterilization selfsealing poch bag
ETHYLENE OXIDE STERILIZER (CONSUMABLE)
Product overview:
SAQIANG ethylene oxide sterilizer is mainly through its non-specific alkylation with genetic materials such as protein and DNA / RNA in microorganisms, resulting in the denaturation of proteins and genetic materials, and finally the death of microorganisms due to blocked metabolism.
Applicable items:
Rigid endoscope, hose endoscope, ophthalmic lens, fiber optic cable, surgical instruments, metal, glass, silica gel, rubber, traditional Chinese medicine, western medicine, human plants, DNA, etc.
Applicable scenario:
Medical device manufactures, disposable medical supplies manufacturers, operating rooms, university laboratories, disinfection supply centers, biotechnology companies, ETC.
| Applicable items and materials | ||||
|---|---|---|---|---|
 |
 |
 |
 |
 |
| Model | SQ-H40 |
| Liner (D*W*H) mm | Φ 246X450 |
| Outside (L*W*H) mm | 750X510X410 |
| Volume | 23L |
| Power | 3.3KVA |
| Weight | 56KG |
| Model | Liner (D*W*H) mm | Outside (L*W*H) mm | Volume | Power | Weight |
|---|---|---|---|---|---|
| SQ-H80 | 585X275X422 | 795X615X1140 | 80L | 2.6KVA | 124KG |
| SQ-H120 | 585X375X472 | 795X615X1140 | 120L | 3.0KVA | 147KG |
| SQ-H220 | 705X505X552 | 968X800X1240 | 220L | 3.3KVA | 207KG |
| SQ-H330 | 760X575X682 | 968X800X1380 | 330L | 3.6KVA | 227KG |
| Model | Liner (D*W*H) mm | Outside (L*W*H) mm | Volume | Power | Weight |
|---|---|---|---|---|---|
| SQ-XH120 | 700X450X400 | 976X790X1715 | 126L | 3.0KVA | 224KG |
| SQ-XH220 | 820X510X460 | 976X790X1715 | 192L | 3.6KVA | 247KG |

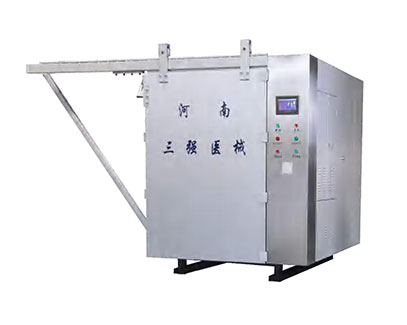

ETHYLENE OXIDE STERILIZER (CONSUMABLES)
| Model | Liner (D*W*H) mm | Outside (L*W*H) mm | Power |
|---|---|---|---|
| SQ-E3 | 2220X960X1420 | 2400X1705X2200 | 14KVA |
| SQ-E6 | 3350X1200X1500 | 3550X1900X2260 | 29KVA |
| SQ-E10 | 5600X1200X1500 | 5850X1900X2260 | 35KVA |
| SQ-E20 | 11320X1200X1500 | 11516X3192X2250 | 60KVA |
SQ-E series ethylene oxide sterilizer has the characteristics of sophisticated design and sophisticated technology. It is mainly composed of a microcomputer control stystem, residual gas processing device, sterilization studio and other parts. The principle is to rely on ethylene oxide gas in a certain the effect of sterilization is achieved under humidity pressure. Ethylene oxide gas directly destroys microbial proteins, prevents their metabolism, and can kill stubborn bacilli.
Uses are mainly used for all kinds of endoscopes, cotton spinning, silica gel, rubber, catheter wires and various medical consumables, They will not corrode or damage the equipment. Items that cannot be sterilized by ethylene oxide: liquids, aluminum plastic packaging.
Equipment sterilization cost: The amount of ethylene oxide added each time
ETHYLENE OXIDE CONSUMABLE
Ethylene oxide consumables are a series of products produced in order to solve the problem of checking whether the sterilization of ethylene oxide series sterilizers are qualified during the sterilization process. The ethylene oxide consumable products produced by Henan Sanqiang Medical Devices Co., Ltd. are as follows:
Steam ETO sterilization pouch roll
Chemistry indicator strip
Steam biological indicator
Chemistry indicator tape
BD standard test package
Chemical indicator label
Sealing machine
Steam integrator strip
